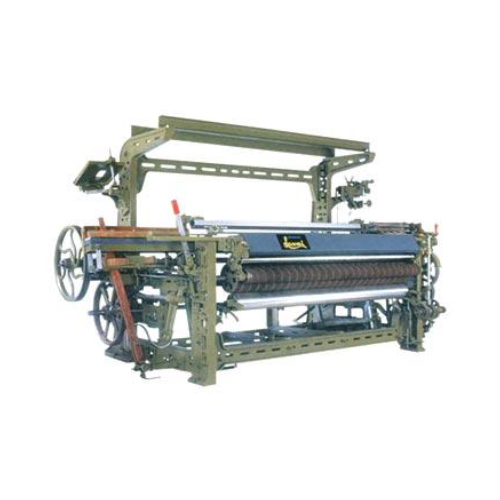

Flexible Rapier Weaving Loom

Flexible Rapier Weaving Loom

Product Details:

X

Product Description

Owing to our state-of-the art manufacturing facilities and skilled professionals, we are able to offer our valuable clients Flexible Rapier Weaving Loom. This weaving loom is manufactured with the help of premium quality components and cutting edge technology as per the set industry norms. It is used in various textile mills for weaving different types of fabrics. We offer this Flexible Rapier Weaving Loom in several customized options as per the detailed provided by the clients.

Features:

  • Rigid Frame Structure
  • Steady Weft Insertions
  • PLC Based Control Panel
  • Pick Finding Device
  • Suitable to weave wide variety of fabrics



Specifications:

Driving System



By Push Button Control on Both Side of Loom

Warp Yarn Detection



6 Row Electrical Type

Running Speed



200-220 RPM

Braking System



By Electromagnetic Brake

Reed Space



160,180,200,230,250 cm.

Letting off Motion



Variable Let-Off Motion

Weft Insertion System



Both Side Flexible Gripper Rapier System.

Weft Selection


Numerical Electronic Weft Selection By PLC

No. 0f Weft Colours*



Up To 8 Colours

Weft Feed



By Weft Feeder

Weft Detection



By Piezo Electric Slide Sensor

Power



Main Motor :1.5 kW, 960 RPM

Shedding Under Motion



* Positve Tappet Cam Shedding Motion-upto 7 Cams.
* Electronic Dobby Cam Shedding With 12-16 shafts
* Electronic Jacquard

Applicable Yarn



Cotton, Filament, Silk and All Man Made yarns

Cloth Roll Dia.



400 mm

Beam Flange Dia.



800 mm.

Selvedge



Insependent Positive Leno-False Selvedge Motion

Weft Insertion Sped



400 m / min.

Take-Up



Continuous Mechanical

Pick finding



Motorised Pick Finding Device (Forward & Reverse)

Lubrication



Centralised Lubrication System

Control Panel



PLC Based With Display

( * Mark Means Options )
Specifications, Equipment And Descriptions Are Subject To Change Without Prior Notice.
